PV on-grid Power system

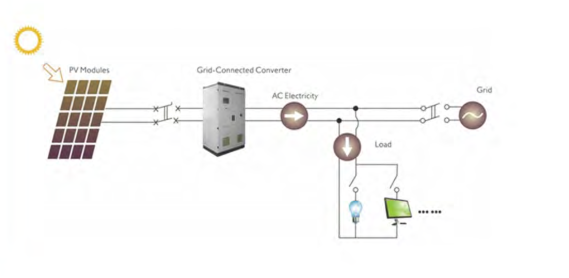

The solar energy grid system’s design capacity range from a few kilowatts to hundreds of kilowatts, even megawatts and on the condition that the combination of domestic photo-voltaic (PV) with architectural are various, so the optimal designing of equipment’s selection should be based on the actual situation of pv array installation ( such as component specifications, orientation), can be roughly divided by centralized power supply and distributed power supply.

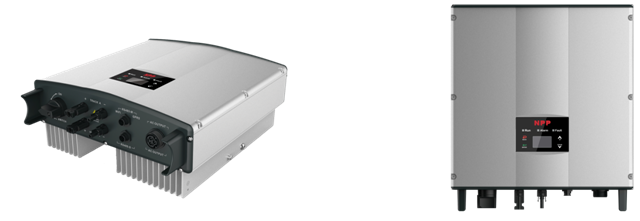

PV On-grid Inverter(Single Phase 1-5KW)
Model
NP-1K
NP-2K
NP-3K
NP-5K
Input(DC)
Max DC power（W）
1200
2200
3300
5500
Max DC voltage(V)
450
450
500
600
Starting Voltage(V)
80
Full load MPPT voltage range/Rated voltage(V)
600-400
100-410
120-450
120-550
Max input current per sring(A)
9
12
15
20
Number of MPPT
1
Number of DC connection sets per MPPT
1/2
1/2
1/2
1/2
DC switch
OPtional
Optional
Optional
Optional
Output(AC)
Rated output power(W)
1000
2000
3000
5000
Max AC output current(A)
4.5
9
13
21
Grid voltage range(V)
180-270
Grid frequency range(Hz)
50Hz+ -10% 60Hz+ -10%
Power factor
≥0.99
Harmonic(THD)
＜3%
AC output
Single phase
General data
Max efficiency
96.90%
97.20%
97.30%
97.80%
Euro efficiency
96.00%
96.10%
96.50%
96.80%
MPPT efficiency
99.90%
Protection level
IP65
Topology
Transformerless
Operating temperature range
-25~60°C
Relative humidity
0-95%
Cooling type
Natural convection
Defensive function
Phtovoltaic array insulation resistance protection/Photovoltaic array
leakage current protection/Ground falty monitoring/power grid monitoring
Display
3.5 inch LCD dispaly,support light show
Systematic language
Chinese,English,German,Dutch
Communication mode
Rs485(Standard type),Wifi,Ethernet(Opt.)

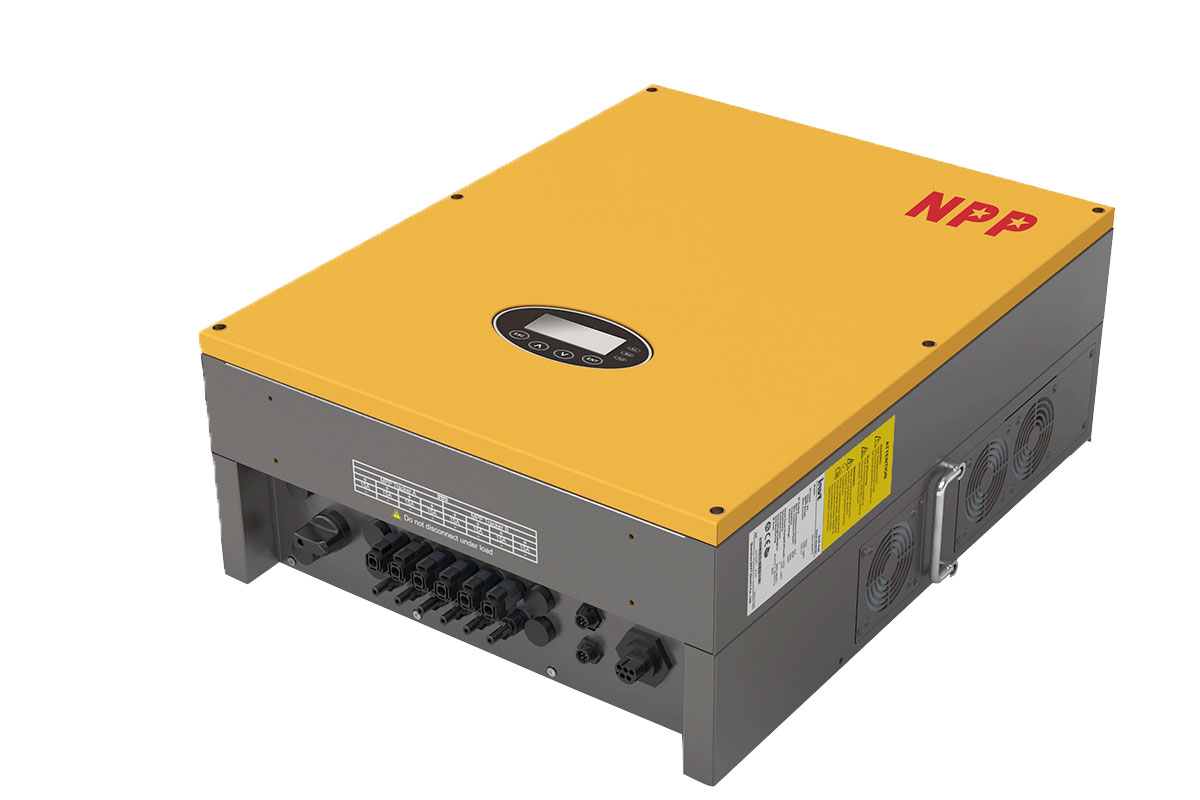

PV On-grid Inverter(Three Phase 10-50KW)
Model
NP-12K
NP-20K
NP-30K
NP-50K
Input(DC)
Max DC power（W）
12500
20800
31000
55000
Max DC voltage(V)
200
300
300
1200
Starting Voltage(V)
200
300
300
1200
Full load MPPT voltage range/Rated voltage(V)
180-800
280-800
280-800
280-800
Max input current per sring(A)
19
25
33
42
Number of MPPT
2
Number of DC connection sets per MPPT
2/2
2/2
2/2
2/2
DC switch
Intergraton
Output(AC)
Rated output power(W)
12000
20000
30000
50000
Max AC output current(A)
20
32
48
52
Grid voltage range(V)
320-460
Grid frequency range(Hz)
50Hz+ -10% 60Hz+ -10%
Power factor
≥0.99
Harmonic(THD)
＜3%
AC output
Single phase
General data
Max efficiency
98.20%
98.40%
97.30%
97.80%
Euro efficiency
97.60%
98.00%
96.50%
96.80%
MPPT efficiency
99.90%
Protection level
IP65
Topology
Transformerless
Operating temperature range
-25~60°C
Relative humidity
0-95%
Cooling type
Natural convection
Defensive function
Phtovoltaic array insulation resistance protection/Photovoltaic array
leakage current protection/Ground falty monitoring/power grid monitoring
Display
3.5 inch LCD dispaly,support light show
Systematic language
Chinese,English,German,Dutch
Communication mode
Rs485(Standard type),Wifi,Ethernet(Opt.)
